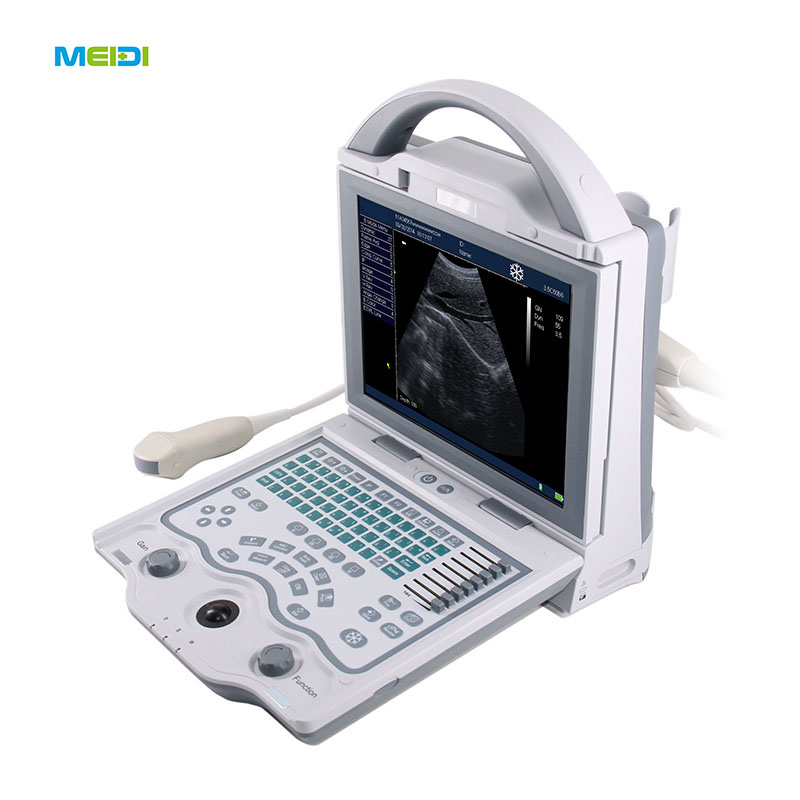

Black and White Ultrasound, Compact, Professional, and B Mode Ultrasound Scanner

Black and White Ultrasound, Compact, Professional, and B Mode Ultrasound Scanner

$1250-1400 /Set/Sets

Contact Now

Model No.: MI-5600

Place Of Origin: China

Kind Of Power: Electricity, Electric

Warranty Service: 1 Year

After-sales Service: None, Online Technical Support

Material: Metal, Plastic

Shelf Life: 1years

Product Quality Certification: Ce

Medical Device Classification: Class Ii

Safety Standard: None

Description

Product Description

Human Ultrasound Scanner

Tech Parameters: 10.4’ high resolution color LED backlight display, with high contrast and wide viewing angle; Adopt ARM7 embedded control system +FPGA signal processing system + well selected ultrasound hardware system, all make the unit more stable. Menu operation system, with different languages according to requirement including Spanish, English, French, Russian and Portuguese; Two probe sockets, auto-identify different optional probe; Body marks:total 64 kinds body marks indicating probe position; Display mode:B,2B,4B ,B/M,M ; Adjustable depth: 10 grades, max depth to 236mm Gain:0~127dB; Contrast:27~90dB; Gray scale:256; 8 steps intelligent TGC; Frame frequency: 30 frames /second 8 kinds pseudo colors; Image storage: 4G hard disk to permanently store about 5000 frames images;without loss when power off. Cine loop:256 frames; Puncture guide function with 2 correctable puncture guiding lines(adjustable angle & position); the gravel software package with real-time position line measurement Normal measurement: distance,perimeter, area, volume, angle, length and area stenosis ratio measurement. Cardio measurement:Depth, slope, heart rate, cycle; Gynecology measurement and analysis: gynecology general measurement and gynecology report. OB measurement including: 15 kind of obstetric software, several GA measurement, amniotic fluid index ,fetal growth curve and OB report. Urology measurement and analysis: residual urine volumem, prostate volume, and urology report . One-key store: concise and practical; One-key review:fast, practical image review function; One-key Print; One-key Transfer the current frozen image to net workstation to complete its image text report and print directly; Concise and practical, easy operation. The system includes network workstation to complete data & report management (You don’t need to invest more to buy extra ultrasound working station); Unique One-key-light keyboard function for black room use; Display brightness adjustable; Dual TV output: PAL/NTSC, can connect video printer when necessary
