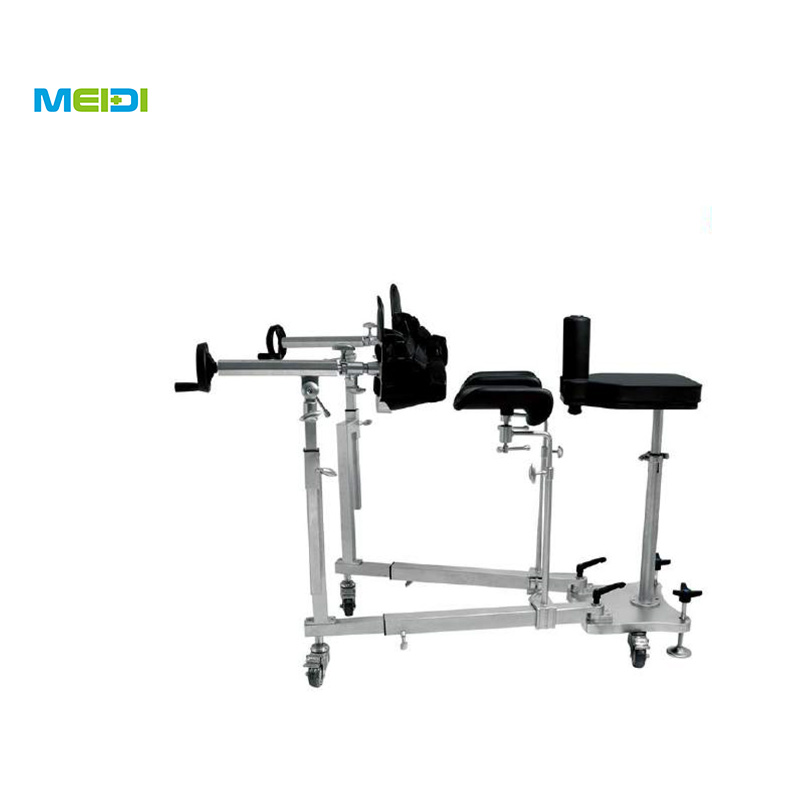

Surgical Bed Accessory Orthopedic Traction Frame Orthopedic Traction Frame

Get Latest Price

Contact Now

Model No.: Q1

Brand Name: MEIDI

Instrument Classification: Class I

Power Source: Machinery

Quality Certification: CE

Model Number: Q1

Place Of Origin: Shandong, China

OEM: Availabe

Application: Hosptial

MOQ: 1 SET

Packing: Wooden case

Description

Product Description

Main Application

The orthopedic traction rack is primarily used for performing various orthopedic surgeries such as traction, reduction, and fixation of the lower limbs. During surgery, it allows for horizontal traction and positioning of the patient's limbs in various positions. The traction rack is designed to be used in combination with an Operating Table.

The traction frame is made of 304 stainless steel as a whole.

The key angle adjustment parts adopt the end face tooth fastening process. The key parts are integrally formed by precision casting.

The unique mechanical structure can be used in conjunction with any type of operating bed.

Application: Used for reduction and traction of lower extremity bones in orthopedic surgery

Product Details

360°swivel base

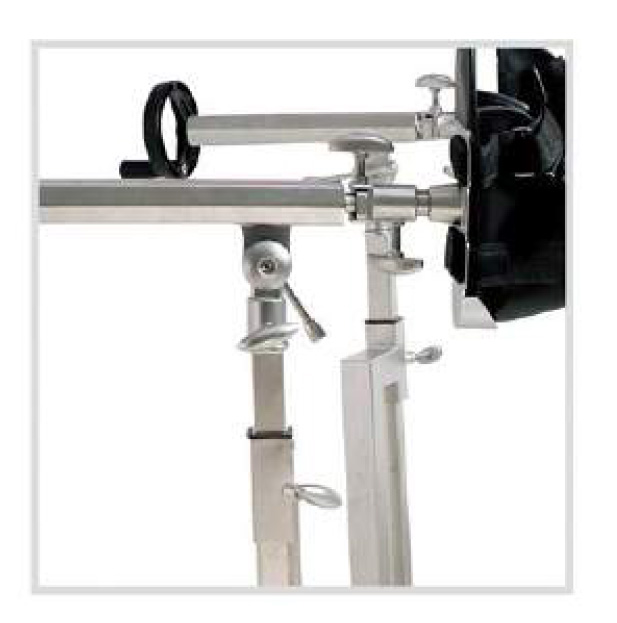

Quick Retraction Device

Stable and reliable base

Seat lifting height	750-1100mm
Two-body strut abduction	≥300°
Tractor horizontal displacement (telescopic rodtelescopic stroke)	≥550mm
Retractor vertical displacement	≥380mm
Tractor horizontal rotation angle	360°
Tractor vertica1rotationangle	360°
Traction shoe rotation angle	360°
Towing stroke	≥190mm
Leg rest displacement	≥490mm
Perineal column length	>230mm
Perineal column outer diameter	≥80mm
