Operating theatre Hydraulic Table

Get Latest Price

Contact Now

Model No.: Hydraulic Operating Table

Dimension: 1950*480mm

Elevation(up/down): 710~960mm

Leg Plate Down: ≥90°

Leg Plate Outward: ≥90°

Description

Product Description

Product description

Parameter Standard accessories

Dimension	1950*480mm	Back plate up	≥80°	Anaesthesia screen frame	1 piece	Shoulder support	2 piece
Elevation(up/down)	710~960mm	Back plate down	≥10°	Body support	2 piece	Arm support	2 piece
Head plate up	≥90°	Leg plate up	≥15°	Long Fixing Clamp	2 piece	Foot plate	2 piece
Head plate down	≥90°	Leg plate down	≥90°	Leg support	2 piece	Mattress	1 piece
Lateral Tilt (Left And Right)	≥20°	Leg plate Outward	≥90°	Fixing Clamp	7 piece
Kidney Bridge Elevation	≥120mm

What are the functional characteristics of the hydraulic Operating Table?

Height and angle adjustment function:The hydraulic operating table can effectively adjust the height, and its height adjustment range is generally between 60-100 cm to adapt to different surgical scenarios and the operating habits of medical staff. In terms of angle adjustment, it can achieve the front and back tilt and left and right tilt of the table. For example, during abdominal surgery, the table can be adjusted to a state where the head is low and the feet are high, which is convenient for Hydraulic Operating Table

exposing the surgical field of view; during spinal surgery, appropriate left and right tilting can better assist the doctor's operation.

Good stability:Since the power provided by the hydraulic system is relatively stable, the operating table can maintain a good balance when carrying the patient and performing various adjustment actions. During the operation, even if it is disturbed by certain external forces (such as slight collisions caused by medical staff during the operation), the hydraulic operating table can remain stable, reducing the risk of patient displacement and thus ensuring the smooth progress of the operation.

Strong carrying capacity:Hydraulic operating tables usually have a large load capacity, generally around 135-200 kg. This makes it suitable for patients of different body sizes, including obese patients. This strong load capacity is particularly important when performing some special operations, such as surgery on obese patients.

Maintenance precautions

Check the hydraulic oil level and quality regularly. Insufficient hydraulic oil may cause the operating table to not work properly, while deterioration of oil quality (such as contamination or aging) will affect the performance of the hydraulic system. It is generally recommended to check the oil level every 3-6 months and replace the hydraulic oil once a year. At the same time, check the sealing of the hydraulic system to prevent hydraulic oil leakage. If cracks are found in the oil pipe or oil leakage at the joint, the oil pipe should be replaced or the joint should be repaired in time. In addition, the tabletop and supporting structure of the operating table should also be cleaned and disinfected regularly to maintain good sanitary conditions.

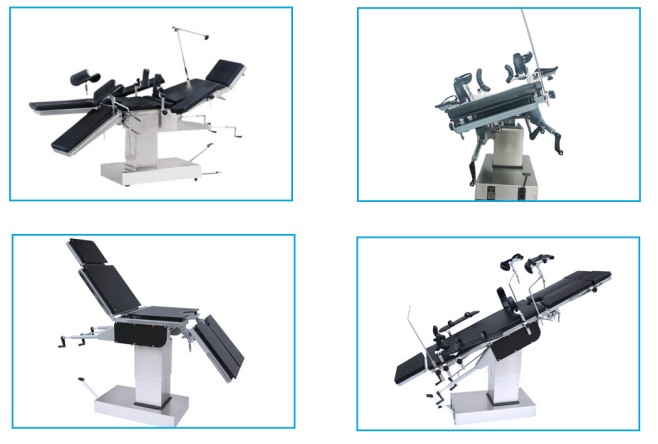

Function diagram
