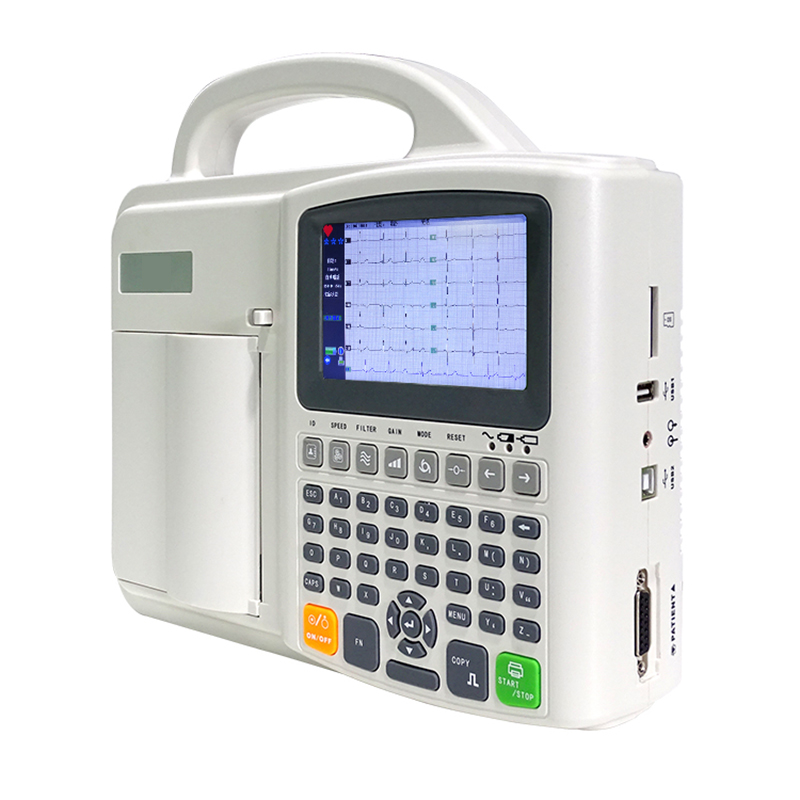

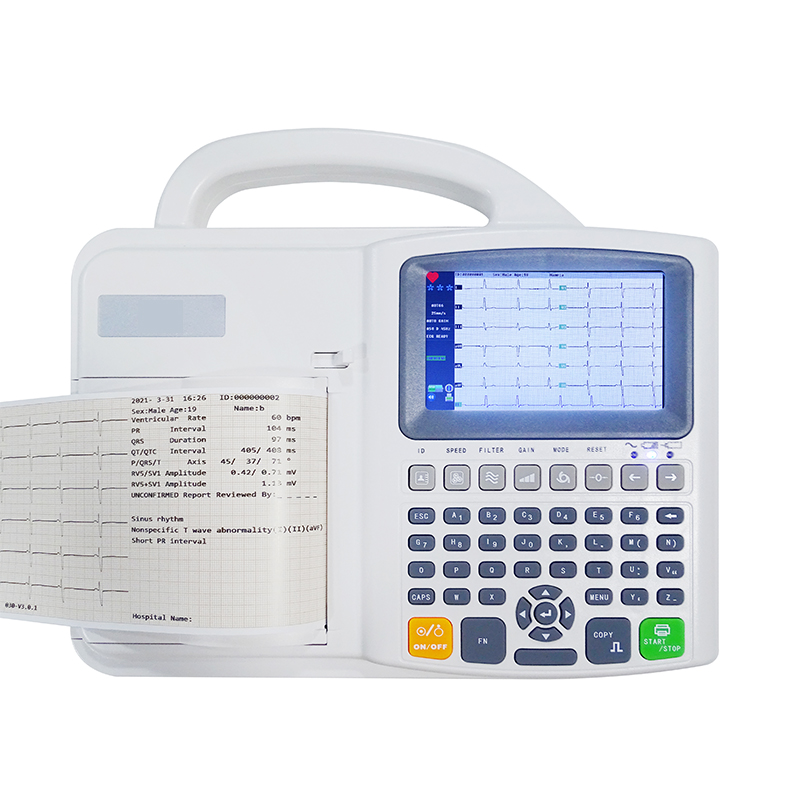

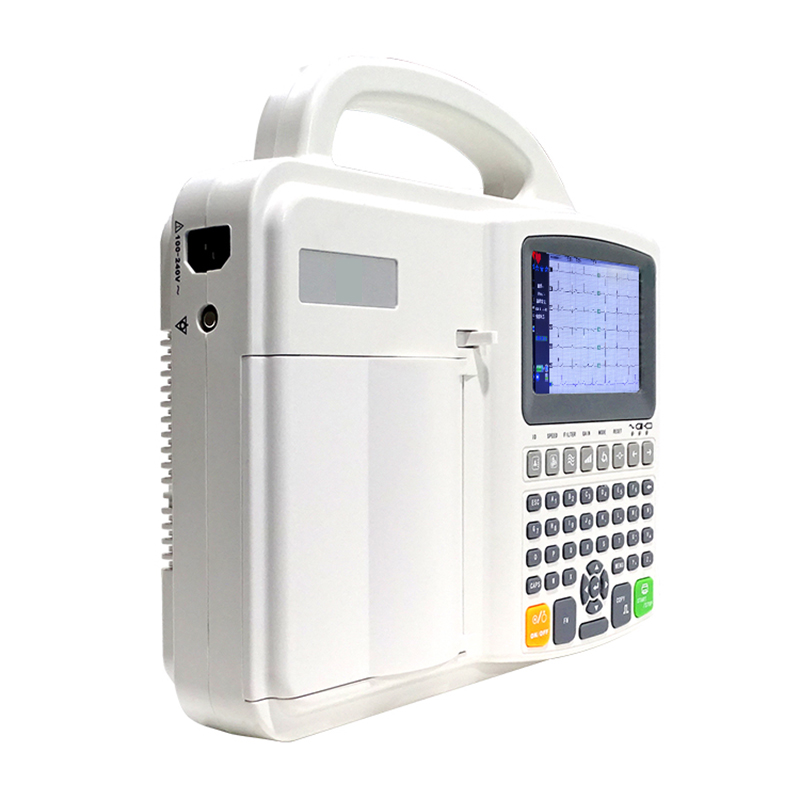

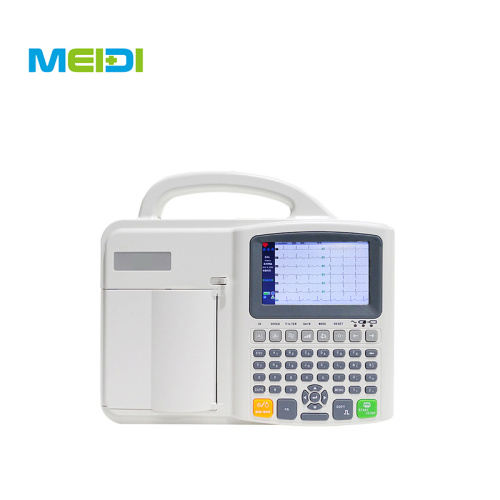

Advanced MEIDI ECG Device for Medical Use

Contact Now

Model No.: E06

Place Of Origin: China

Kind Of Power: Electric, Electricity

Warranty Service: 1 Year

After-sales Service: Online Technical Support

Power Supply: Usb Recharge

Material: Plastic

Shelf Life: 1years

Product Quality Certification: Ce

Medical Device Classification: Class Ii

Safety Standard: None

Description

Product Description

Features

● 6 channel ECG machine with interpretation

● 5.0” color TFT display

● Simultaneous 12 leads acquisition and 1, 1+1, 3 and 6 channel (Manual/Auto) recording with high resolution thermal printer

● Manual/Auto working modes

● Use digital isolation technology and digital signal processing

● Baseline stabilization inspection

● Full alphanumeric silicon keyboard

● Support U disk and SD card storage

Specification

Lead: Standard 12 leads	Polarization Voltage Tolerance: ≥±500mV
Acquisition: Simultaneous 12 leads	Time Constant: ≥3.2s
A/D Converter: 14bit	Frequency Response: 0.05 Hz～250Hz
Sampling Rate: 1000Hz	Noise Level: ＜15μVp-p
Working Mode: Manual/Auto	Sensitivity Threshold: ≤20μV
CMMR: ≥100dB (with AC filter)	Paper: 112mmx20m, roll
Input Circuit Current: ≤0.1μA	Page Speed: 6.25mm/s, 12.5mm/s, 25mm/s, 50mm/s (±3％)
Input Impedance: ≥50MΩ	Sensitivity: 10mm/mV (AUTO), 2.5, 5, 10, 20mm/mV
Patient Current Leakage: ＜10μA	Safe Class: GB9706.1, Class I, Type CF
